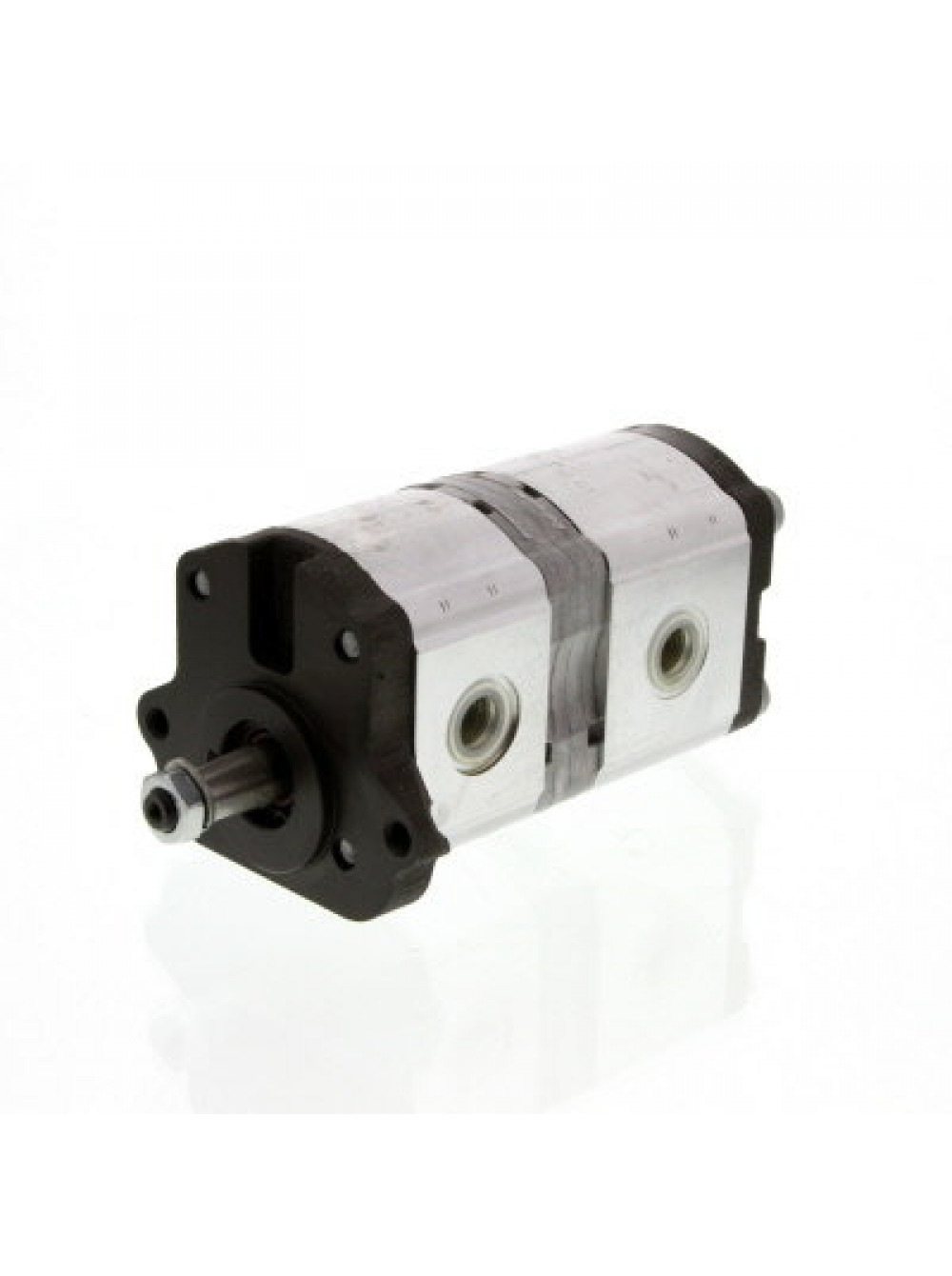

Гидронасос Massey Ferguson 052107T1
111.00 ₽
Описание
Гидронасос Massey Ferguson 052107T1
S.43590
F000510502
69/566-374
471, 481, 491, 492
| Type of pump | gearpump |
|---|---|
| Number of elements | 2 |
| Type of flange | special |
| Thread type of mounting holes TA1 | 3/8 UNC |
| Center distance of mounting holes C1 (mm) | 100 |
| Total length of pump L1 (mm) | 223 |
| Neck diameter D2 (mm) | 52 |
| Type of shaft | type G |
| Distance from flange to end L2 (mm) | 37 |
| Diameter of shaft D3 (mm) | 14.5 |
| Key (way) width W (mm) | 3.2 |
| Thread type (on shaft) TA2 | M12 |
| Direction of rotation | counter clockwise |
| Position of suction port 1st element, only for pump type T POS-CO1 | side |
| Type of connections suction port1st element, only for pump type T TY-COa | type A |
| Thread type of connections suction 1st element | M6 |
| Center distance between mounting holes C-CO1a (mm) | 40 |
| Position of pressure 1st element, only for pump type T POS-CO2 | side |
| Type of connections pressure 1st element, only for pump type T TY-COb | type A |
| Thread type of connection pressure port 1st element TA-COb | M6 |
| Center distance between mounting holes C-CO1b (mm) | 35 |
| Position of suction port 2nd element, only for pump type T POS-CO3 | side |
| Type of connections suction port 2nd element, only for pump type T TY-COc | type A |
| Position of pressure port 2nd element, only for pump type T POS-CO4 | side |
| Type of connections pressure port 2nd element, only for pump type T TY-COd | type A |
| Flow control valve present | NO |
| Material of the housing | aluminium |
