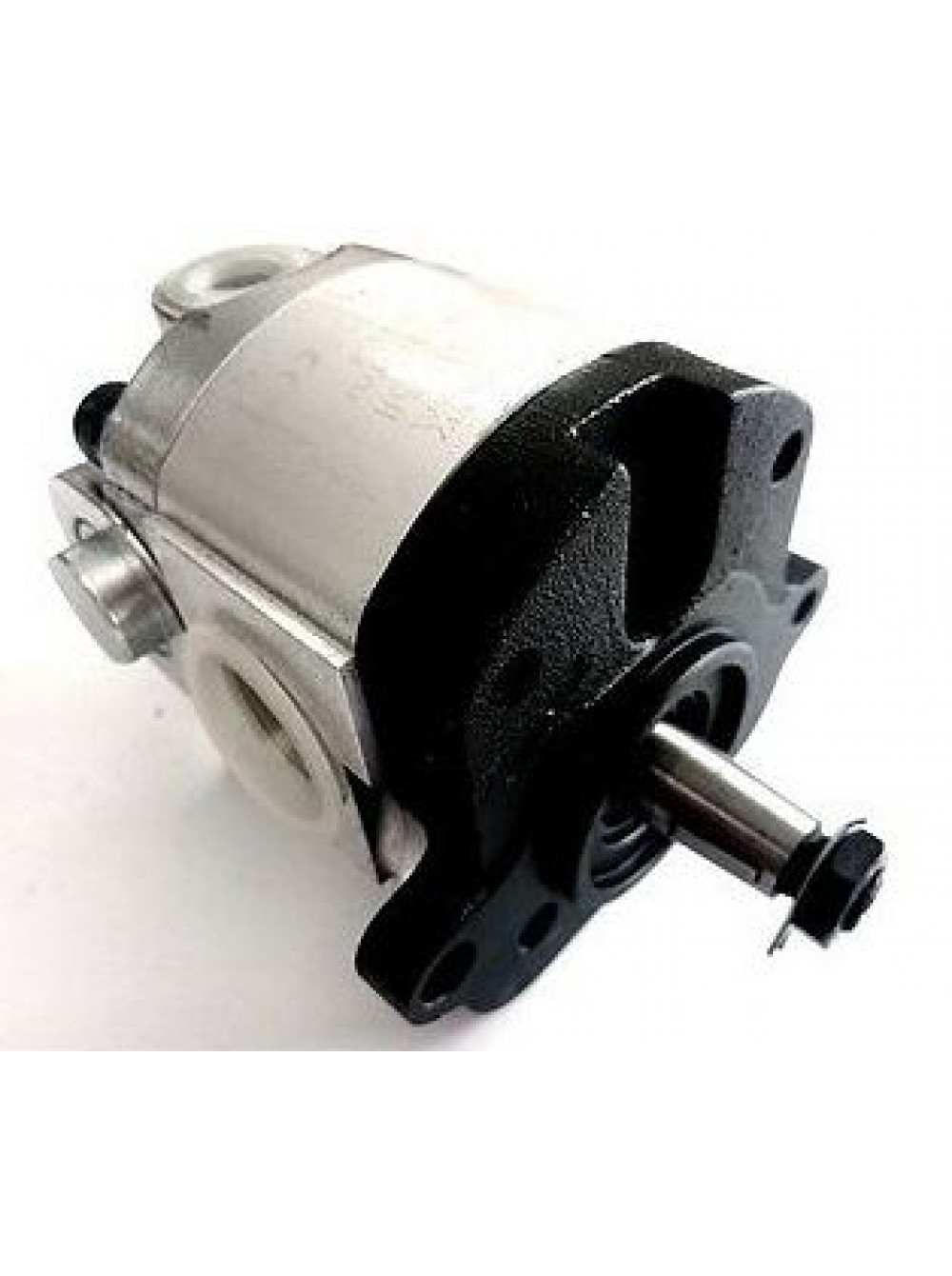

Гидронасос Massey Ferguson 1685031M92
111.00 ₽
Описание
Гидронасос Massey Ferguson 1685031M92
27365
1685031M92-A
27365-A
| Type of pump | gearpump |
|---|---|
| Number of elements | 1 |
| Type of flange | special |
| Diameter of flange mounting holes D1 (mm) | 10 |
| Thread type of mounting holes TA1 | 3/8 UNC |
| Center distance of mounting holes C1 (mm) | 99.6 |
| Total length of pump L1 (mm) | 166 |
| Neck diameter D2 (mm) | 52.3 |
| Type of shaft | type G |
| Distance from flange to end L2 (mm) | 40.5 |
| Diameter of shaft D3 (mm) | 15 |
| Key (way) width W (mm) | 3.2 |
| Thread type (on shaft) TA2 | M12 |
| Direction of rotation | counter clockwise |
| Position of suction port 1st element, only for pump type T POS-CO1 | side |
| Type of connections suction port1st element, only for pump type T TY-COa | type E |
| Thread type suction side of 1st element TA-Pa | M32 |
| Flow control valve present | YES |
| Biggest Thread type valve TA3 | 3/4 UNF |
| Second Thread type valve TA4 | 3/4 UNF |
| Material of the housing | aluminium |
