Описание

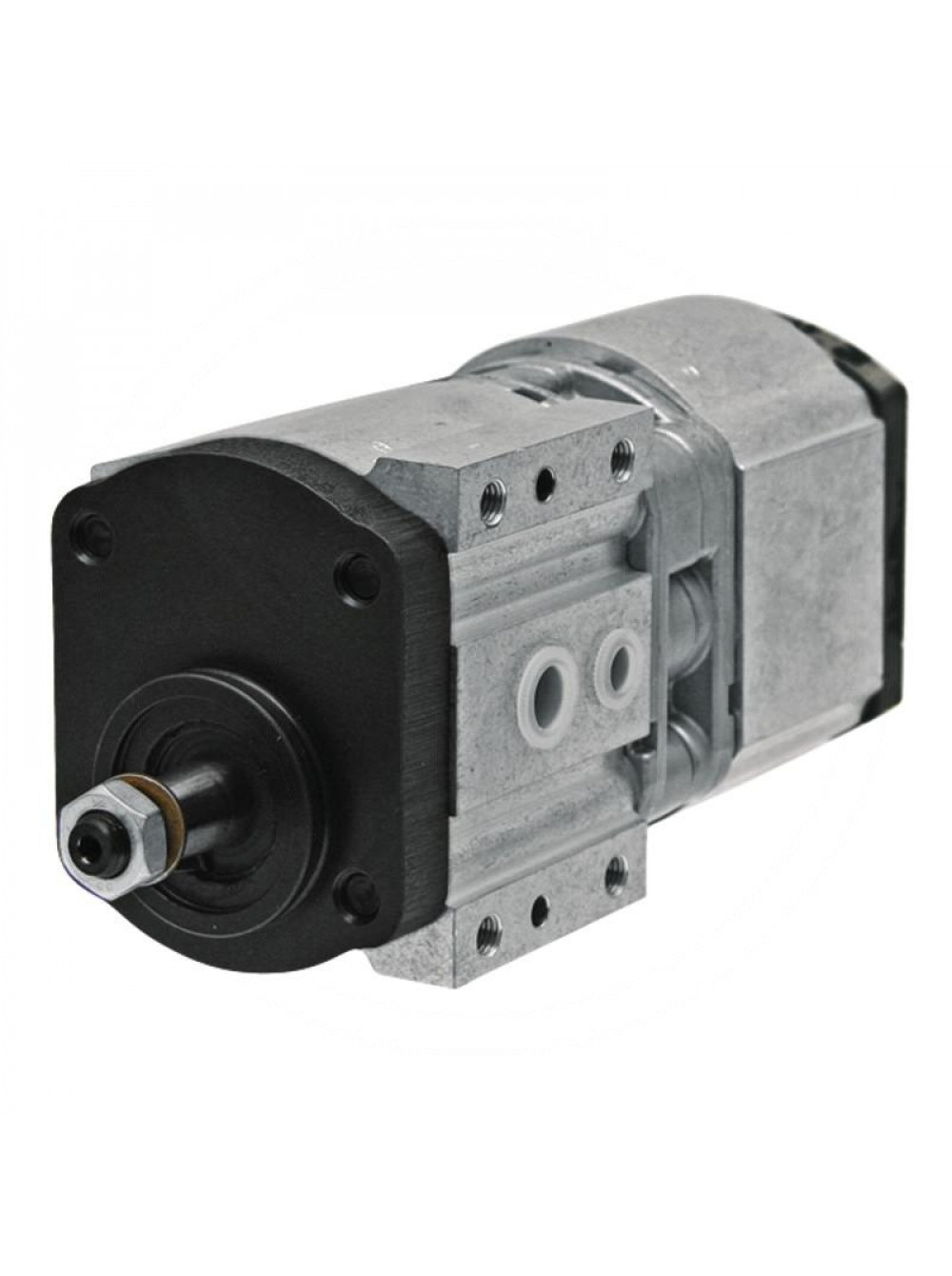

Гидронасос Massey Ferguson 3797116M2
3797116M1
Bosch Rexroth 0510665440
1518222586 + 1518222587
0510665491 MNR 1518222090
0510665440PM
69/565-240
2560510665440
Type of pump gearpump
Number of elements 2
Type of flange special
Total length of pump L1 (mm) 228
Neck diameter D2 (mm) 50
Type of shaft type G
Distance from flange to end L2 (mm) 40
Diameter of shaft D3 (mm) 14.5
Key (way) width W (mm) 3
Thread type (on shaft) TA2 M12
Direction of rotation counter clockwise
Position of suction port 1st element, only for pump type T POS-CO1 side
Type of connections suction port1st element, only for pump type T TY-COa type C
Thread type of connections suction 1st element M6
Center distance between mounting holes C-CO1a (mm) 35.5
Center distance between mounting holes C-CO2a (mm) 35.5
Position of pressure 1st element, only for pump type T POS-CO2 side
Type of connections pressure 1st element, only for pump type T TY-COb type F
Position of pressure port 2nd element, only for pump type T POS-CO4 side
Type of connections pressure port 2nd element, only for pump type T TY-COd type F
Flow control valve present NO
Material of the housing aluminium
Output volume (cc/rev): 14 + 19
Weight: 5.53 kg
