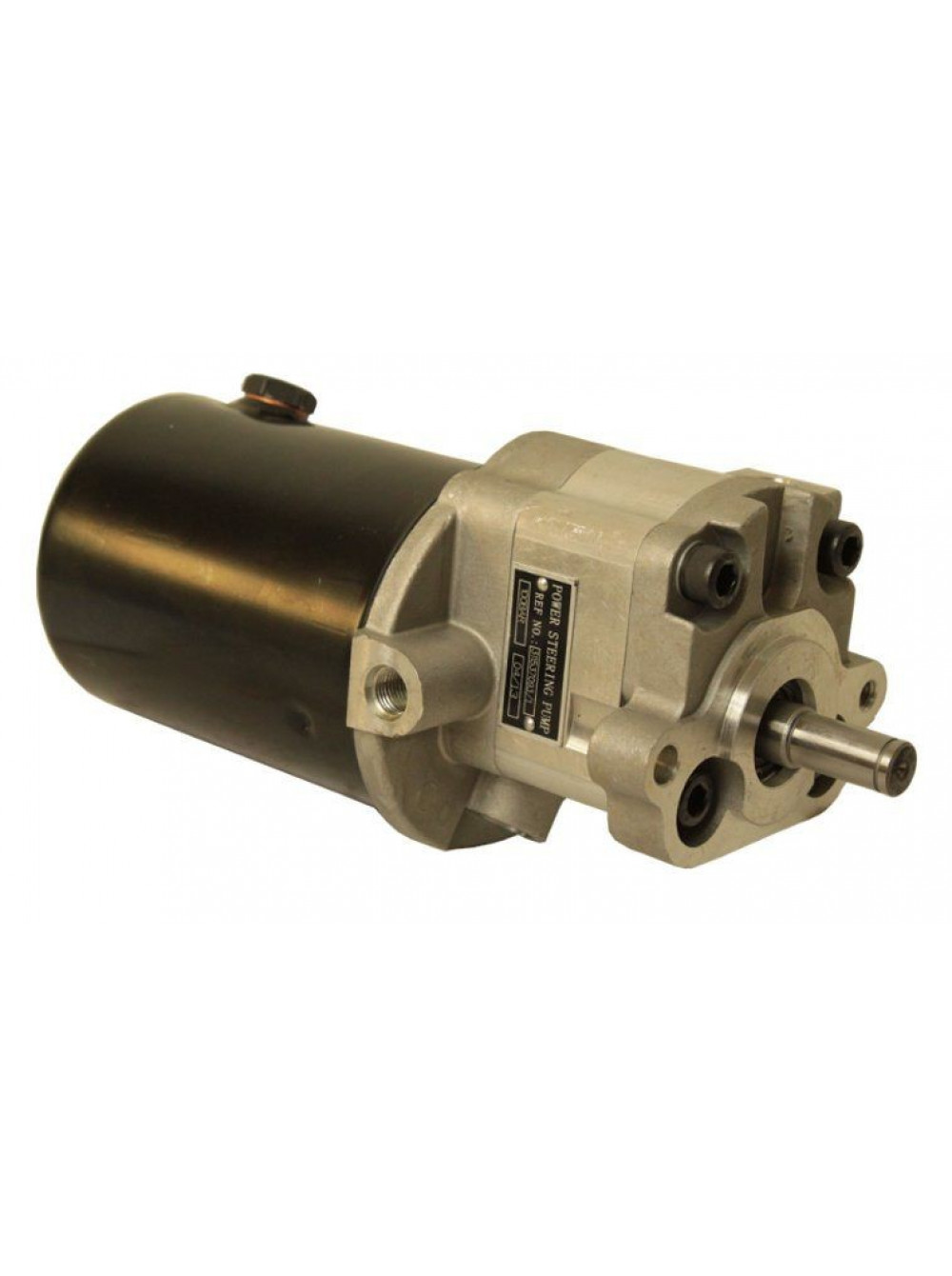

Гидронасос Massey Ferguson 897147M95

Гидронасос Massey Ferguson 897147M95

897146M94 1662243M91 3774617M92

Type of pump

gearpump

Number of elements

1

Type of flange

special

Diameter of flange mounting holes D1 (mm)

10.5

Thread type of mounting holes TA1

3/8 UNC

Center distance of mounting holes C1 (mm)

100

Total length of pump L1 (mm)

273

Neck diameter D2 (mm)

52

Type of shaft

type C

Distance from flange to end L2 (mm)

41

Diameter of shaft D3 (mm)

15

Key (way) width W (mm)

3

Direction of rotation

counter clockwise

Position of suction port 1st element, only for pump type T POS-CO1

side

Type of connections suction port1st element, only for pump type T TY-COa

type E

Thread type suction side of 1st element TA-Pa

9/16 UNF

Position of pressure 1st element, only for pump type T POS-CO2

side

Type of connections pressure 1st element, only for pump type T TY-COb

type E

Thread type pressure side of 1st element TA-Pb

9/16 UNF

Flow control valve present

NO

Material of the housing

aluminium

Вес (кг): 3,59
