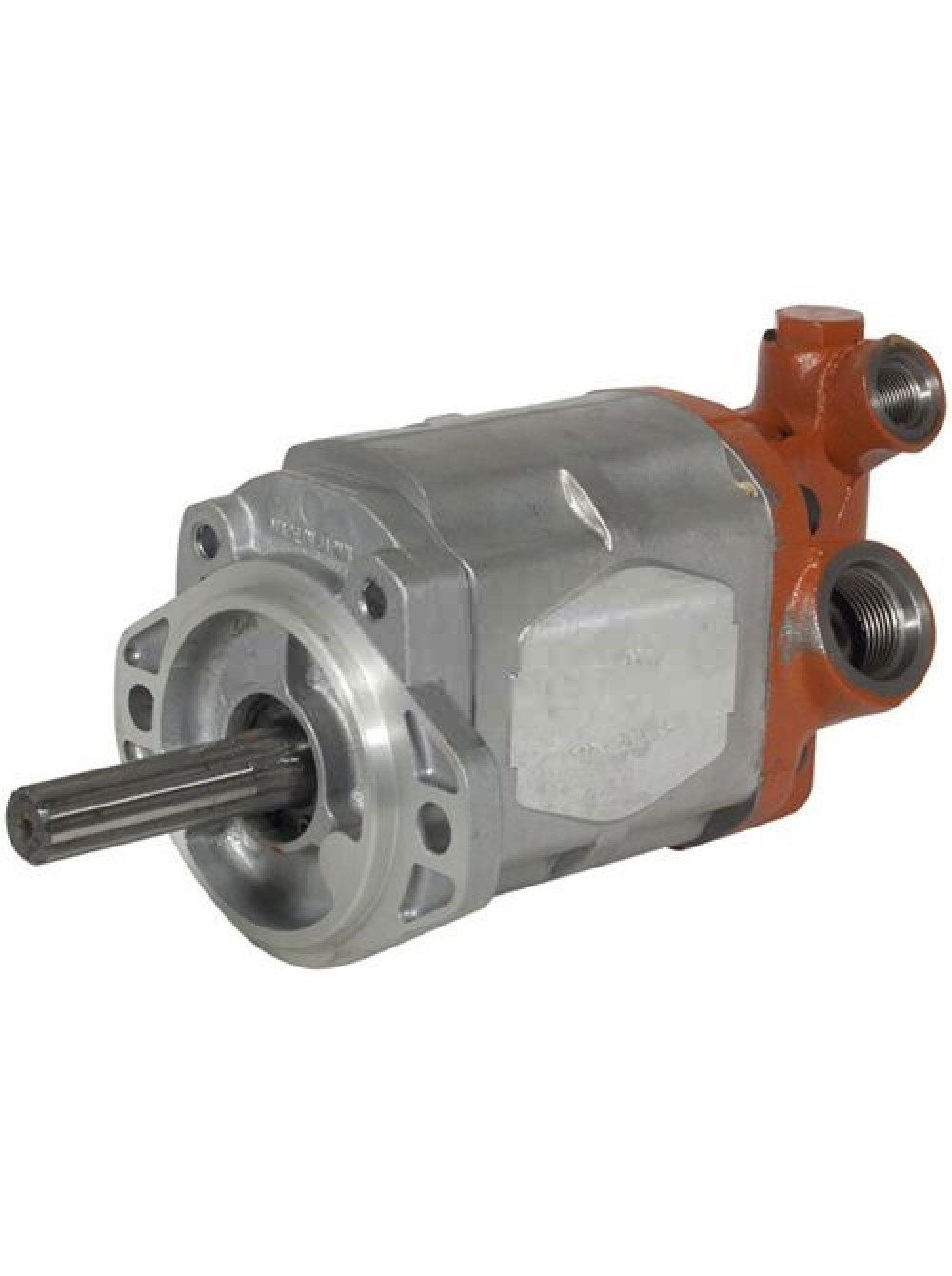

Гидронасос Mitsubishi 91471-36100
111.00 ₽
Описание
Гидронасос MITSUBISHI 91471-36100
9147136100
MB91471-36100
CA91471-36100
Type of pump
gearpump
Number of elements
1
Type of flange
type A
Diameter of flange mounting holes D1 (mm)
11
Center distance of mounting holes C1 (mm)
106
Total length of pump L1 (mm)
264
Neck diameter D2 (mm)
82
Type of shaft
type D
Distance from flange to end L2 (mm)
70.5
Diameter of shaft D3 (mm)
17.6
Number of splines
10
Direction of rotation
counter clockwise
Position of suction port 1st element, only for pump type T POS-CO1
side
Type of connections suction port1st element, only for pump type T TY-COa
type D
Thread type of connections suction 1st element
M10
Center distance between mounting holes C-CO1a (mm)
52.4
Center distance between mounting holes C-CO2a (mm)
26.3
Flow control valve present
YES
Biggest Thread type valve TA3
3/4 BSP
Second Thread type valve TA4
3/8 BSP
Material of the housing
aluminium
Торговая марка: KAYABA-INDUSTRY
Вес (кг): 6,4
